Date: Spring, 2018
Institution: Harvard GSD
Instructor: Belinda Tato
Institution: Harvard GSD
Instructor: Belinda Tato
The project is the design of a new 300-room mixed-use hotel above an existing parking garage in New Haven, Connecticut built by Paul Rudolph. Due to the historic importance of the parking garage, there was a degree of limitation to the extent to which the original structure could be modified.
![](https://pro2-bar-s3-cdn-cf1.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/c7cab7f5-2157-4fed-839c-c0778a26923a_rw_3840.jpg?h=2def76e52234394f974fbbac399a0494)
Site Plan
![](https://pro2-bar-s3-cdn-cf.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/85c5767e-68a8-4fc5-9a03-cd8ea644960b_rw_3840.jpg?h=53cb4f81a57bc1df6ba52822585c0352)
Ground Level Plan
![](https://pro2-bar-s3-cdn-cf6.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/034bb5bf-e1c5-409c-9bb6-85ababb9e2c6_rw_3840.jpg?h=e79c0a20508d3871eef2136b415cce42)
Lobby Level Plan
![](https://pro2-bar-s3-cdn-cf1.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/c876ba72-f91c-4f89-a3e1-593bf907b8a7_rw_3840.jpg?h=c28a7552790e6f09cc1e5cddcc8deaf6)
Auditorium Level Plan
![](https://pro2-bar-s3-cdn-cf3.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/eb73a973-e714-42c2-bea2-b619b3f5e3b0_rw_1920.jpg?h=a43f1ed3e55066c4d3c3451682cea4e1)
Fitness Level Plan
![](https://pro2-bar-s3-cdn-cf2.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/d2ae9428-752a-49ae-bba7-b7aea79ae42a_rw_1920.jpg?h=034bc393d0c6fb62334ede2642a79158)
Typical Hotel Floor Plan
![](https://pro2-bar-s3-cdn-cf5.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/685d787e-30ee-4c4b-9cd5-f28dccaf7b19_rw_3840.jpg?h=430e79c8caf5e3d6fd63ff4ec693d049)
Elevation
![](https://pro2-bar-s3-cdn-cf2.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/36fe8f3a-6804-4f83-8239-341c31584fff_rw_3840.jpg?h=06a771d9eb08e3722eab66250636562d)
Lobby View
![](https://pro2-bar-s3-cdn-cf6.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/7e9bfb89-b702-4dae-a1e9-d22d6d046bef_rw_1920.jpg?h=445260d625f9c1e827f867aa7cbd5a17)

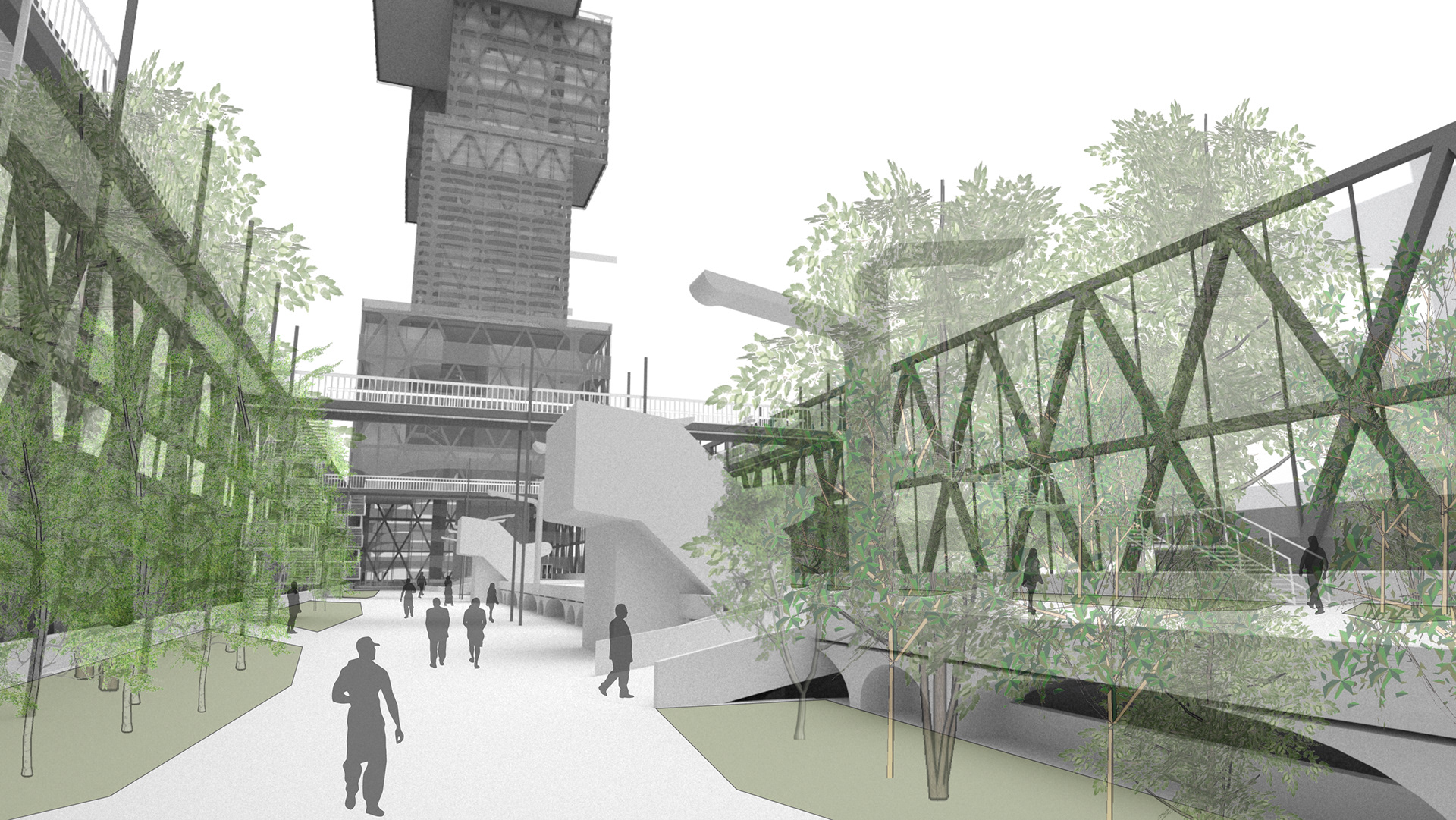

View of elevated park
![](https://pro2-bar-s3-cdn-cf2.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/3f226659-6955-4cbc-9c16-9e649873aad9_rw_3840.jpg?h=dd8f58327dc2aacfb67dad68cc60f2d9)
![](https://pro2-bar-s3-cdn-cf.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/b3b43f23-6f40-423d-99f4-c908662207b8_rw_3840.jpg?h=28e1d4b758d61a1e111879be0f90cd8b)
![](https://pro2-bar-s3-cdn-cf2.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/368ccb21-24d9-4036-8684-9eba69354ed0_rw_3840.jpg?h=ea01c5628b6bd0de373429fc16134122)
![](https://pro2-bar-s3-cdn-cf2.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/37d723cf-2171-45f7-a3db-d2aa44435cd7_rw_3840.jpg?h=7c4281d152058ba478a61500a4d52d08)
Conceptual Models
![](https://pro2-bar-s3-cdn-cf1.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/2b64bece-d172-4785-8254-42d766f83ac8_rw_1920.jpg?h=9585537098d75cf3ab27d8180c2858b9)
![](https://pro2-bar-s3-cdn-cf1.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/c6e3141d-a7b4-44fd-8fc2-fbb14440e18b_rw_1920.jpg?h=be0990973577b5da609f431a857110cc)
![](https://pro2-bar-s3-cdn-cf1.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/919c920c-3803-4068-9aba-d63115916fa1_rw_1920.jpg?h=9024860b03b5d32b768c85a3ed261705)
![](https://pro2-bar-s3-cdn-cf6.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/a03e56e7-991a-4e1b-960a-d8ec07a0b1a1_rw_1920.jpg?h=ac51847aa58d3dac0a9d1eb0c6e263a5)
![](https://pro2-bar-s3-cdn-cf1.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/98c4face-b48e-4e91-96a8-54a3c3447868_rw_1920.jpg?h=ed8390d2ed11cdfd6954e187b3a0847c)
![](https://pro2-bar-s3-cdn-cf3.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/ee3e20bb-0569-4e23-b3ef-5dd5924739e6_rw_1920.jpg?h=ff86a6428d8d8020d05374f1d263dacd)
![](https://pro2-bar-s3-cdn-cf6.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/7529a216-1baf-44a2-b6d1-946353facc9b_rw_1920.jpg?h=03bdb502955eaee47ae35f0dfa858a7b)
![](https://pro2-bar-s3-cdn-cf6.myportfolio.com/f51659aa-91b1-4e42-8f5f-755bfaabb38d/a9adb0e3-c7a2-4866-8f40-26f0636faebd_rw_1920.jpg?h=4ea19f810d1f691bd0898480bf5a187b)

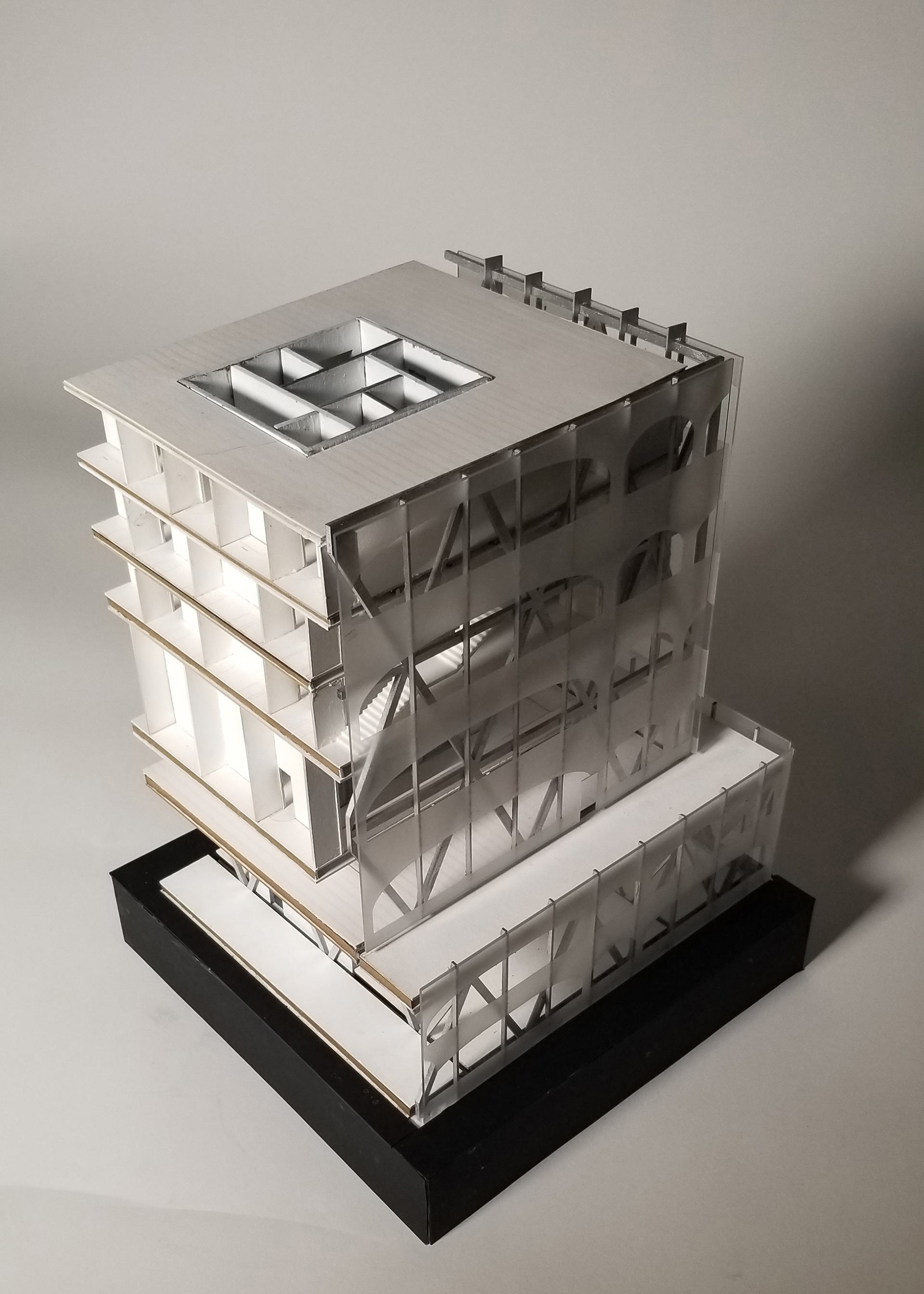

Fragment Model
